THE CAR

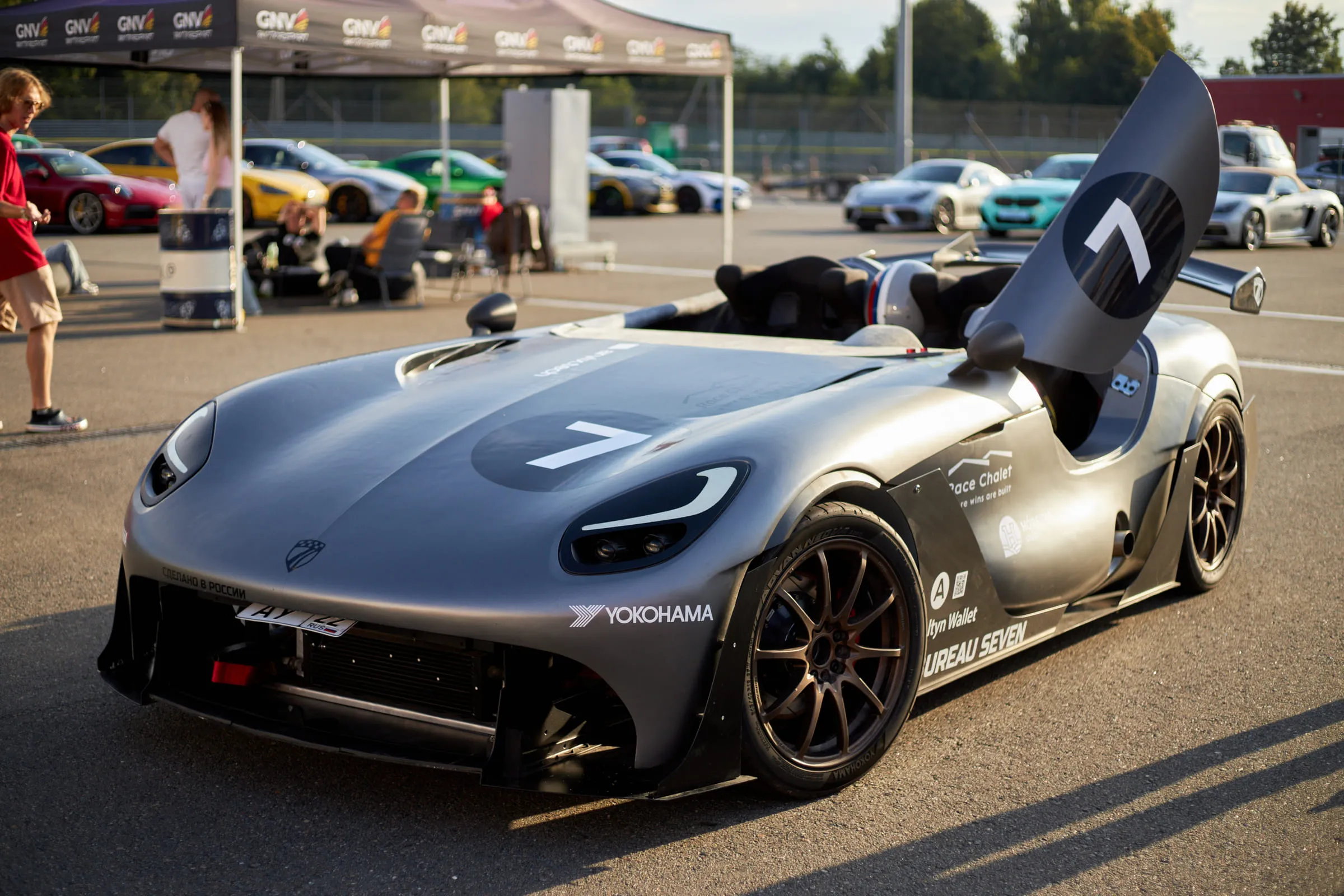

Project Seven
The GTX one-make car — identical for everyone on the grid. Eight years on from Project 527, with everything drivers and mechanics asked for
Specification
SPECIFICATION
800kgkerb weight
400hpBMW B58 in production
Powertrain
- Engine
- Pre-production — Toyota 2GR, 3.5 l, 350 hp / 420 Nm. Production — BMW B58, 400 hp / 500 Nm
- Transmission
- AISIN 8-speed automatic on the pre-production car. ZF 8HP or a Gear Set sequential in production. Rear-wheel drive
Chassis and safety
- Chassis
- Steel spaceframe with an integrated roll cage of seamless cold-rolled tube, aramid panels
- Safety
- A Formula 1 HALO, optional for the passenger. Programmed deformation zones in aluminium profile front and rear
- Brakes
- AP Racing, race configuration
Dimensions and weight
- Weight
- 800 kg
- Dimensions
- 4280 × 1970 × 1055 mm, 1140 mm over the HALO. Ground clearance 109 mm
- Track and wheelbase
- 1515 mm front, 1585 mm rear. Wheelbase 2520 mm
Wheels and tyres
- Wheels
- 18″ × 9″, 5 × 114.3, ET35

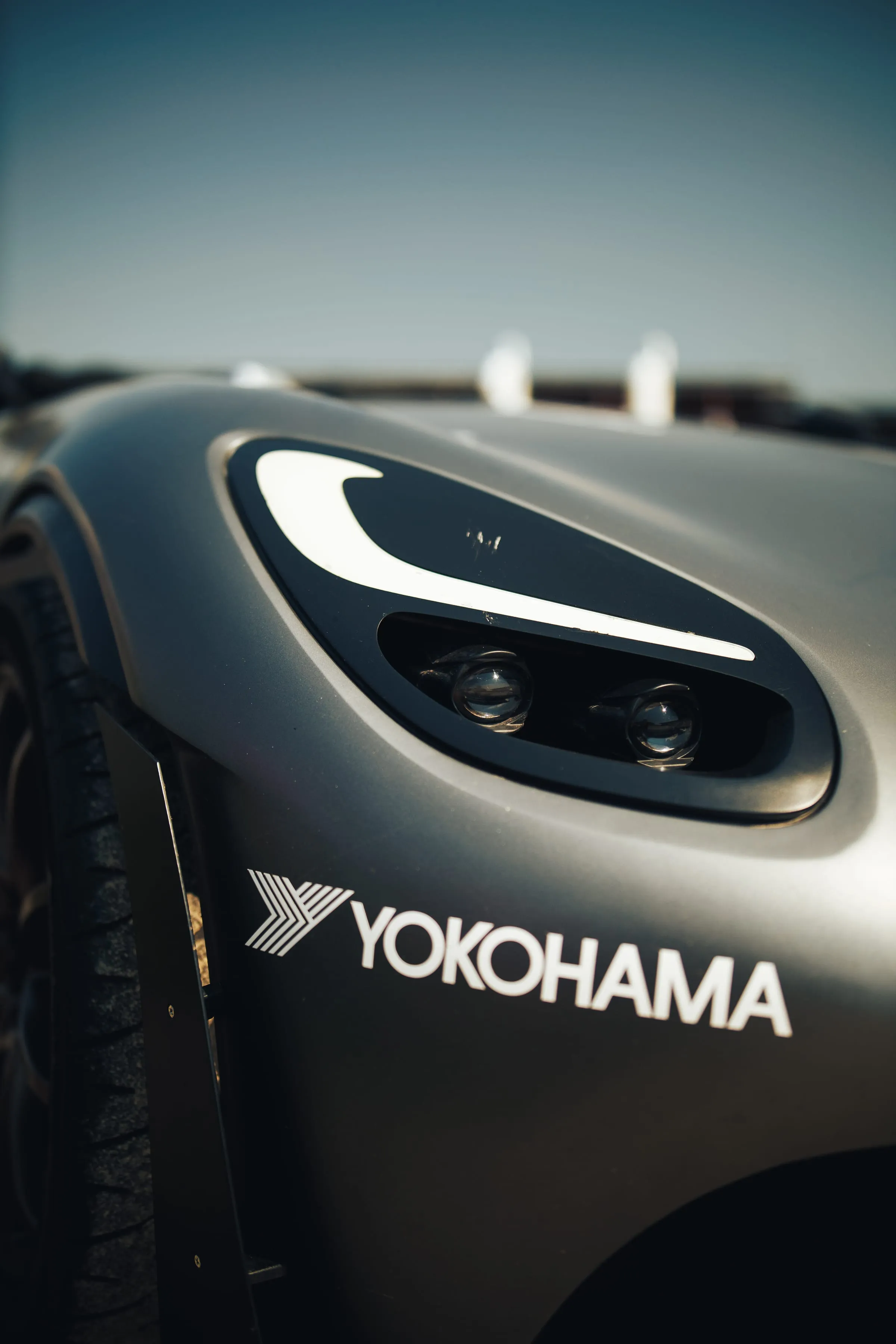

- Tyres
- Yokohama AD09 R18 255/40 as delivered. Circuit A052, dry slick A005 250/650, wet A006 250/650, winter Ice Guard IG65 245/40
Regulations and equipment
- Fuel tank
- 50 l for sprints, 100 l for endurance (optional)
- Homologation
- KM-2601 RAF (FIA)
- Telemetry
- AIM
Gallery
Production and delivery
ORDER
- Lead time
- Up to 12 months. Orders accepted before September 2026 ship by 31 May 2027
- Production limit
- 12 cars a year
- Warranty
- 24 months on chassis and body, 12 months on engine, gearbox and final drive
- Support
- For the first year, technical and service support is provided by the KB 7 team only
- Delivery
- Anywhere in Russia by freight carrier
- Payment
- By invoice once the production contract is signed
